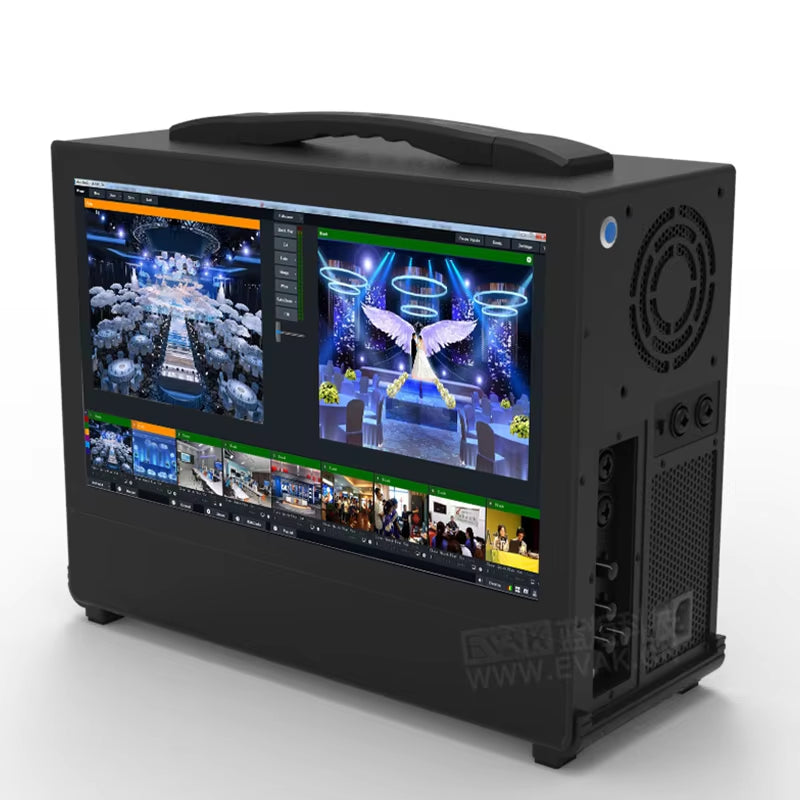

Professional vMix Streaming Workstation
Complete Portable Broadcasting Solution
Transform your live streaming and video production with this all-in-one professional broadcasting workstation. Designed for content creators, streamers, churches, educational institutions, and production studios, this portable system combines powerful computing hardware with a built-in display for a complete production studio in a single compact unit.
Configuration Options
Choose the configuration that best matches your production needs:
| Component | Premium Config | Professional Config | Performance Config |
|---|---|---|---|
| Processor | Intel Core i9-13900 | Intel Core i7-13700 | Intel Core i7-13700K |
| Memory | 32GB DDR4 | 32GB DDR4 | 32GB DDR4 |
| Primary Storage | 1TB NVMe SSD | 1TB NVMe SSD | 1TB NVMe SSD |
| Secondary Storage | 4TB HDD | 2TB HDD | Not Included |
| Graphics Card | NVIDIA RTX 3060 | NVIDIA RTX 3050 | NVIDIA RTX 3050 |
| Video Capture | 4× HDMI or 4× SDI | 4× HDMI or 4× SDI | 4× HDMI or 4× SDI |

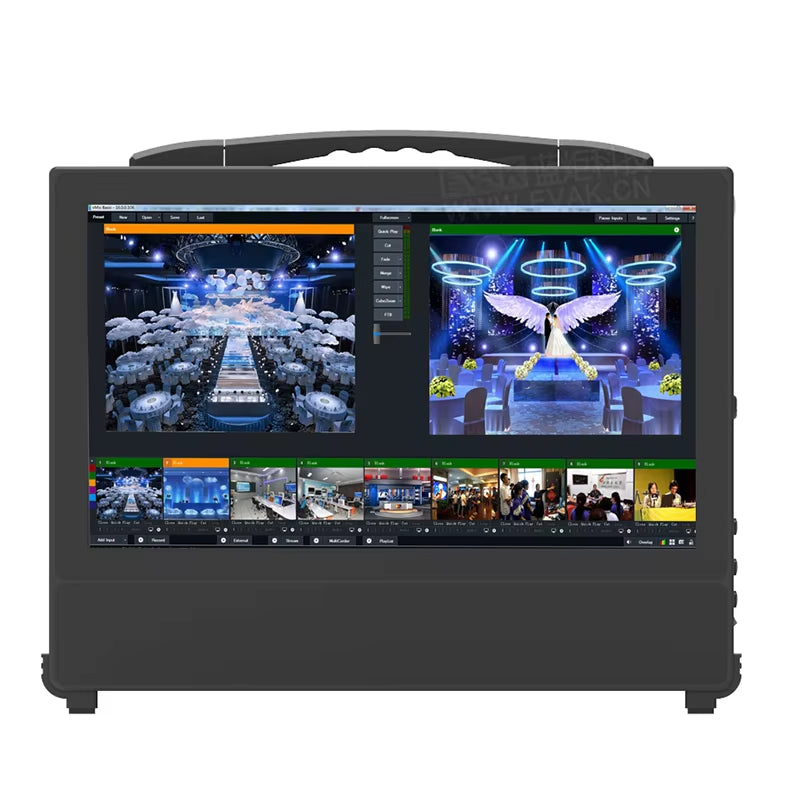

Display Specifications
| Feature | Specification |
|---|---|
| Screen Size | 17.3" TFT LCD |
| Resolution | 1920×1080 Full HD |
| Brightness | 300 cd/m² |
| Viewing Angle | 170° (H) / 170° (V) |
| Touch Screen | Optional 10-point capacitive touch |
| Audio | Dual 2W speakers with volume control |

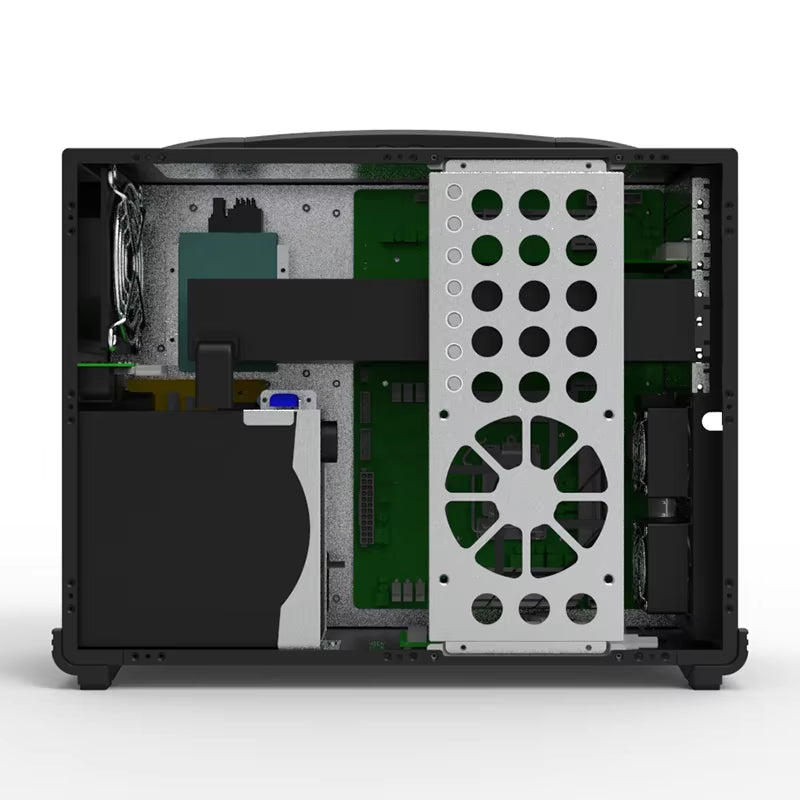

System Capabilities
| Component | Specification |
|---|---|
| Motherboard Support | Micro ATX, ATX, E-ATX |
| Maximum CPU TDP | 95W |
| Maximum GPU TDP | 150W |
| Expansion Slots | 7× full-length PCIe slots |
| Storage Bays | 1× 3.5" HDD + 4× 2.5" SSD/HDD |
| Cooling System | 2× 120mm + 2× 60mm silent fans |
| Power Supply | 600W ATX (90-264V AC, 50-60Hz) |
Software & Operating System
| Component | Details |
|---|---|
| Operating System | Windows 10 Professional (pre-installed) |
| Included Software | vMix (Basic HD or HD version) |
| Compatible Platforms | OBS Studio, Wirecast, XSplit, and more |
Physical Specifications
| Specification | Measurement |
|---|---|
| Dimensions | 442mm (L) × 342mm (W) × 176mm (H) |
| Dimensions (Imperial) | 17.4" × 13.5" × 6.9" |
| Weight | 7.55 kg / 16.6 lbs |
Environmental Specifications
| Condition | Operating | Storage |
|---|---|---|
| Temperature | 0°C to 50°C (32°F to 122°F) | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10% to 90% (non-condensing) | 5% to 95% (non-condensing) |
| Vibration | 0.4Grms (10-500Hz) | 1.12Grms (10-500Hz) |
Key Features
Portable Studio Freedom - The integrated 17.3" Full HD monitor and compact footprint eliminate the need for separate displays and bulky equipment, making it perfect for on-location broadcasts, events, or space-limited studios.
Professional Multi-Camera Production - Built-in 4-channel video capture card supports simultaneous HDMI or SDI inputs, allowing you to switch between multiple camera angles, presentations, and video sources in real-time.
Broadcast-Grade Performance - Powered by Intel's 13th generation processors and NVIDIA RTX graphics, this workstation handles 4K streaming, real-time graphics overlays, virtual sets, and complex multi-source productions.
Ready Out of the Box - Pre-configured with vMix software and Windows 10 Professional, you can start streaming immediately without complicated setup.
Ideal Applications
- Live Event Broadcasting - Conferences, weddings, concerts, sports events
- House of Worship - Services, special events, online ministry
- Education - Lecture capture, virtual classrooms, online courses
- Content Creation - YouTube, Twitch, professional livestreaming
- Corporate Communications - Webinars, product launches, internal broadcasts
- Government & Municipal - Council meetings, public announcements
- Medical & Healthcare - Telemedicine, surgical broadcasts, training
- Esports & Gaming - Tournament broadcasts, competitive gaming
Package Contents
- Professional Streaming Workstation (your selected configuration)
- Integrated 17.3" Full HD Display
- vMix Software License (Basic HD or HD version)
- Windows 10 Professional (pre-installed)
- Power Cable
- User Manual
Why Choose This Over Traditional Setups?
vs. Laptop + Capture Card - More powerful processing, superior cooling, fully expandable, includes dedicated monitoring display.
vs. Desktop + Separate Equipment - Portable design, space-saving, professional cable management, ready for immediate deployment.
vs. Hardware Switchers - Greater flexibility, software-updatable, virtual sets and graphics capabilities, more affordable for similar performance.
